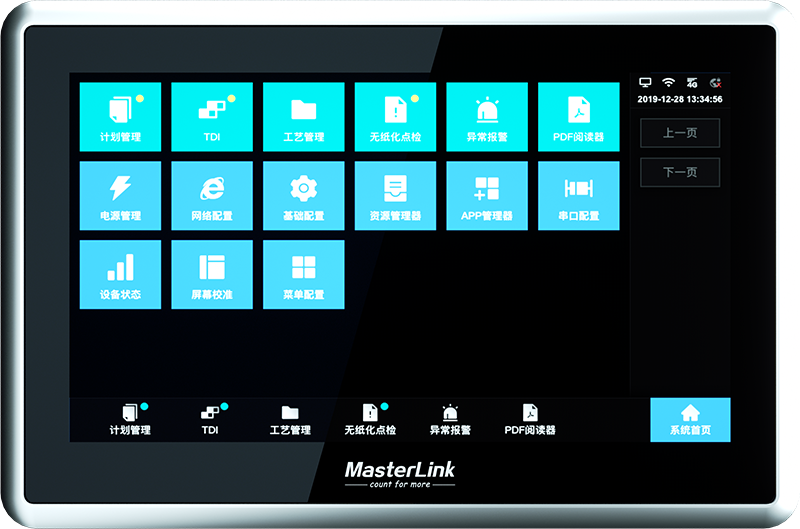

MasterLink MTPad
Human computer interaction 5G terminal
Software and hardware interaction center
Related parameters
Main system
CPU ARM ® Cortex ®- A9 1GHz dual core
RAM 2G DDR3
10.1-inch high brightness LED, industrial resistance touch screen
Storage expansion embedded TF memory card, supporting up to 128G
Network interface
Dual network ports 10/100Mbps adaptive, RJ45, dual network ports support hand in hand switching
Isolation protection 15KV air discharge and 8KV contact discharge protection
Serial interface
RS485 serial port, RS232 serial port 1 channel 485, 2 channels 232
Photoelectric isolation Independent photoelectric isolation of each channel
15KV ESD is provided for all signal lines of serial port protection
Flow direction control RS485 automatic data flow direction control
DI / DO
Optocoupler isolation 3-way DI (24V)
Optocoupler isolation 3-way DO (24V)
USB/LED indicator/RTC
USB2.0 1-way HOST 1-way OTG
System power
RTC embedded backup lithium battery RTC
Working environment/power supply
Operating temperature: - 40 ℃~85 ℃
Power input 24VDC anti reverse connection protection and over-current and over-voltage protection
Power output 1 circuit 5V/2A 1 circuit 24V/2A
4G
4G module MINI PCIe interface
RF band TDD: 38/40/41 (n) FDD: 1/3/5 UMTS: 1/8
Standard TDD-LTE/FDD-LTE/UMTS
GPS/WIFI/SIM card
Beidou module (optional) 4g module with Beidou/gps
Master slave mode (standard configuration) 2.4g/5g
M2M IoT chip/plug-in sim card embedded in SIM slot
Mechanical properties
Housing aluminum alloy (>2mm)
Weight 1000g (this is the appearance weight of engineering plastics, and die-casting aluminum will be updated)
Size 276 * 178 * 38 (mm)
The installation mode is suitable for VESA standard hole mounting bracket to assist strong magnetic adsorption

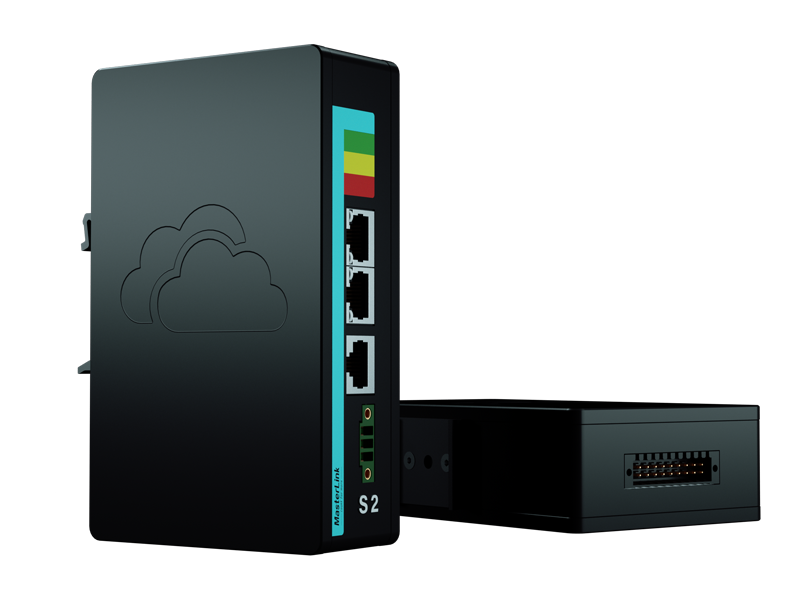

MasterLink S2
Intelligent Gateway
Intelligent data acquisition terminal
Related parameters
Main system
CPU ARM ® Cortex ®- A8 800MHz
RAM 512M DDR3
Storage expansion embedded TF memory card, supporting up to 128G
Network interface
Dual network ports 10/100Mbps adaptive, RJ45, dual network ports support hand in hand switching
Isolation protection 15KV air discharge and 8KV contact discharge protection
Serial interface
RS485 serial port, RS232 serial port RJ45, 1-circuit 485, 1-circuit 232
Photoelectric isolation Independent photoelectric isolation of each channel
15KV ESD is provided for all signal lines of serial port protection
Flow direction control RS485 automatic data flow direction control
GPS/WIFI/SIM card
Beidou module (optional)
Master slave mode (optional)
M2M IoT chip/plug-in sim card embedded in SIM slot
Mechanical properties
Housing aluminum alloy (>2mm)
Weight 500g
Size 150 × ninety × 40 mm
Installation method Guide rail installation
Working environment/power supply
Operating temperature: - 40 ℃~85 ℃
Power input 12~36 VDC, 24 VDC is recommended
System power consumption 500mA 12VDC, 6w
4G
4G module MINI PCIe interface
RF band TDD: 38/40/41 (n) FDD: 1/3/5 UMTS: 1/8
Standard TDD-LTE/FDD-LTE/UMTS
Button/LED indicator/RTC
Function supports "reset to factory default settings"
System power supply, operation and error reporting
4G network is normal, interrupted
RTC embedded backup lithium battery RTC
MasterLink MTPad
Human computer interaction 5G terminal
Software and hardware interaction center
Related parameters
Main system
CPU ARM ® Cortex ®- A9 1GHz dual core
RAM 2G DDR3
10.1-inch high brightness LED, industrial resistance touch screen
Storage expansion embedded TF memory card, supporting up to 128G
Network interface
Dual network ports 10/100Mbps adaptive, RJ45, dual network ports support hand in hand switching
Isolation protection 15KV air discharge and 8KV contact discharge protection
Serial interface
RS485 serial port, RS232 serial port 1 channel 485, 2 channels 232
Photoelectric isolation Independent photoelectric isolation of each channel
15KV ESD is provided for all signal lines of serial port protection
Flow direction control RS485 automatic data flow direction control
DI / DO
Optocoupler isolation 3-way DI (24V)
Optocoupler isolation 3-way DO (24V)
USB / LED indicator light / RTC
USB2.0 1-way HOST 1-way OTG
System power
RTC embedded backup lithium battery RTC
Working environment/power supply
Operating temperature: - 40 ℃~85 ℃
Power input 24VDC anti reverse connection protection and over-current and over-voltage protection
Power output 1 circuit 5V/2A 1 circuit 24V/2A
4G
4G module MINI PCIe interface
RF band TDD: 38/40/41 (n) FDD: 1/3/5 UMTS: 1/8
Standard TDD-LTE/FDD-LTE/UMTS
GPS / WIFI / SIM card
Beidou module (optional) 4g module with Beidou/gps
Master slave mode (standard configuration) 2.4g/5g
M2M IoT chip/plug-in sim card embedded in SIM slot
Mechanical properties
Housing aluminum alloy (>2mm)
Weight 1000g (this is the appearance weight of engineering plastics, and die-casting aluminum will be updated)
Size 276 * 178 * 38 (mm)
The installation mode is suitable for VESA standard hole mounting bracket to assist strong magnetic adsorption
MasterLink S2
Intelligent Gateway
Intelligent data acquisition terminal
Related parameters
Main system
CPU ARM ® Cortex ®- A8 800MHz
RAM 512M DDR3
Storage expansion embedded TF memory card, supporting up to 128G
Network interface
Dual network ports 10/100Mbps adaptive, RJ45, dual network ports support hand in hand switching
Isolation protection 15KV air discharge and 8KV contact discharge protection
Serial interface
RS485 serial port, RS232 serial port RJ45, 1-circuit 485, 1-circuit 232
Photoelectric isolation Independent photoelectric isolation of each channel
15KV ESD is provided for all signal lines of serial port protection
Flow direction control RS485 automatic data flow direction control
GPS / WIFI / SIM card
Beidou module (optional)
Master slave mode (optional)
M2M IoT chip/plug-in sim card embedded in SIM slot
Mechanical properties
Housing aluminum alloy (>2mm)
Weight 500g
Size 150 × ninety × 40 mm
Installation method Guide rail installation
Working environment/power supply
Operating temperature: - 40 ℃~85 ℃
Power input 12~36 VDC, 24 VDC is recommended
System power consumption 500mA 12VDC, 6w
4G
4G module MINI PCIe interface
RF band TDD: 38/40/41 (n) FDD: 1/3/5 UMTS: 1/8
Standard TDD-LTE/FDD-LTE/UMTS
Button/LED indicator/RTC
Function supports "reset to factory default settings"
System power supply, operation and error reporting
4G network is normal, interrupted
RTC embedded backup lithium battery RTC
